Siding Profiles (for exterior & interior use)

Meadow Valley features 9 styles of precision cut log & timber siding. Choose from spruce 2 x 6 or step up to the heavy 4 1/2″ half log. If you are constructing new or remodeling a standard stick built home or cabin, but favor the look of a log structure, then wood siding is the answer. Add up the advantages with our unique “Full Tail Corner System”, energy efficiency of a 6″ insulated wall, and the flexibility of interior finishes makes the decision easy.

2 x 6 Log Siding

Species

Kiln Dried SPF / Air Dried Western Red Cedar

Surface

Smooth (Rustic & Skip Hewn Available)

Coverage

4 3/4 inch

Square Foot Coverage

.39 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

V-notch Corner Log

Square Timber Corner

Trim

2 1/4 x 4 Smooth, Hewn, or Round

SPF Part #

1010002602–08 (Smooth)

1011002602–08H (Rustic Hewn)

1011002602–08K (Skip Hewn)

1010002602–12

1011002602–12H

1011002602–12K

1010002602–16

1011002602–16H

1011002602–16K

Cedar Part #

2010002602–08

2010002602–08H

2010002602–08K

2010002602–12

2010002602–12H

2010002602–12K

2010002602–16

2010002602–16H

2010002602–16K

2 x 8 STD Log Siding

Has a 3/8″ reveal or flat spot to simulate a chink line.

Species

Kiln Dried SPF / Air Dried Western Red Cedar

Surface

Smooth (Skip Hewn Available)

Coverage

6 1/2 inch

Square Foot Coverage

.54 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

Full Tail (Butt & Pass)

V-notch Corner Log

Square Timber Corner

Trim

2 1/4 x 4 Smooth, Hewn, or Round

SPF Part #

1010012802-08 (Smooth)

1011022801–08K (Skip)

1010012802-12

1011022801–12K (Skip)

1010012802-16

1011022801–16K (Skip)

Cedar Part #

2010012802-08

2010022801–08K (Skip)

2010012802-12

2010022801–12K (Skip)

2010012802-16

2010022801–16K (Skip)

2 x 8 MVP Log Siding

Species

Kiln Dried SPF / Air Dried Western Red Cedar

Surface

Smooth (Rustic & Skip Hewn Available)

Coverage

6 1/2 inch

Square Foot Coverage

.54 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

Full Tail (Butt & Pass)

V-notch Corner Log

Square Timber Corner

Trim

2 1/4 x 4 Smooth, Hewn, or Round

SPF Part #

1010022802-08 (Smooth)

1011022802-08H (Rustic Hewn)

1011022802-08K (Skip Hewn)

1010022802-12

1011022802-12H

1011022802-12K

1010022802-16

1011022802-16H

1011022802-16K

Cedar Part #

2010022802-08

2010022802-08H

2010022802-08K

2010022802-12

2010022802-12H

2010022802-12K

2010022802-16

2010022802-16H

2010022802-16K

3 x 8 Loggers Choice

Species

Kiln Dried Wisconsin White Pine

Surface

Smooth (Rustic & Skip Hewn Available)

Coverage

7 inch

Square Foot Coverage

.58 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

Full Tail (Butt & Pass)

V-notch Corner Log

Square Timber Corner

Trim

3×4 Smooth, Hewn, or Round

Part #

3010033802-08 (Smooth)

3010033802-08H (Rustic Hewn)

3010033802-08K (Skip Hewn)

3010033802-12

3010033802-12H

3010033802-12K

3010033802-16

3010033802-16H

3010033802-16K

2½ x 10 Super Log Siding

Species

Kiln Dried Wisconsin White Pine

Surface

Smooth (Rustic & Skip Hewn Available)

Coverage

8 inch

Square Foot Coverage

.66 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

Full Tail (Butt & Pass)

V-notch Corner Log

Square Timber Corner

Trim

2 1/4 x 4 Smooth 3×4 Smooth, Hewn, or Round

Part #

3010111002-08 (Smooth)

3010111002-08H (Rustic Hewn)

3010111002-08K (Skip Hewn)

3010111002-12

3010111002-12H

3010111002-12K

3010111002-16

3010111002-16H

3010111002-16K

3x 10 Super Log Siding

Species

Kiln Dried Wisconsin White Pine

Surface

Smooth (Rustic & Skip Hewn Available)

Coverage

8 1/2 inch

Square Foot Coverage

.70 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

Full Tail (Butt & Pass)

V-notch Corner Log

Square Timber Corner

Trim

3×4 Smooth, Hewn, or Round

Part #

3010111004-08 (Smooth)

3010111004-08H (Rustic Hewn)

3010111004-08K (Skip Hewn)

3010111004-12

3010111004-12H

3010111004-12K

3010111004-16

3010111004-16H

3010111004-16K

2 x 8 T&G Timber Siding

Species

Kiln Dried SPF / Air Dried Western Red Cedar

Surface

Smooth / Combed / Skip Hewn

Coverage

6 5/8 inch

Square Foot Coverage

.55 sq. ft. per lin. ft.

Lengths

8′ , 12, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

Square Timber Corner

Trim

2 1/4 x 4 Smooth or Hewn

SPF Part #

1010402800-08S (Smooth)

1010402800-08 (Combed)

1010402800-08K (Skip Hewn)

1010402800-12S

1010402800-12

1010402800-12K

1010402800-16S

1010402800-16

1010402800-16K

Cedar Part #

2010402800-08S

2010402800-08

2010402800-08K

2010402800-12S

2010402800-12

2010402800-12K

2010402800-16S

2010402800-16

2010402800-16K

2 x 10 T&G Timber Siding

Species

Kiln Dried SPF

Surface

Smooth / Combed / Skip Hewn

Coverage

8 5/8 inch

Square Foot Coverage

.71 sq. ft. per lin. ft.

Lengths Even Only

8′, 12′, 16′

Fasteners

Splitless Siding Galvanized Nails or Screws

Corners

Square Timber Corner

Trim

2 1/4 x 4 Smooth or Hewn

Part #

1010412100-08S (Smooth)

1010412100-08 (Combed)

1010412100-08K (Skip Hewn)

1010412100-12S

1010412100-12

1010412100-12K

1010412100-16S

1010412100-16

1010412100-16K

4 ½ x 9 Half Log Siding

Species

Air Dried Wisconsin White Pine

Surface

Smooth (Rustic & Skip Hewn Available)

Coverage

7 3/4 inch

Square Foot Coverage

.64 sq. ft. per lin. ft.

Surface

Smooth (Rustic & Skip Hewn Available)

Lengths

6′ – 16′ (even only)

Fasteners

Log Screws 5/16″ x 6″ and 10″

Corners

Saddle Notch V-notch Corner Log

Trim

5×5 Smooth or Hewn x6 Smooth (3″ being the face)

Part #

3010204901-06 (Smooth)

3010204901-06H (Hewn)

3010204901-08

3010204901-08H

3010204901-10

3010204901-10H

3010204901-12

3010204901-12H

3010204901-14

3010204901-14H

3010204901-16

3010204901-16H

2 x 6 EZ Tongue & Groove

Log Siding (for interior use)

Species

Kiln Dried SPF / Air Dried Western Red Cedar

Surface

Smooth (Skip Hewn Available)

Coverage

4 7/8 inch

Square Foot Coverage

.4 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners (Hidden)

Galvanized Brad or Finish Nails

Corners

Square Inside Corner

Inside Corner Log

Trim

2 1/4 x 4 Smooth, Skip Hewn, or Round

SPF Part #

1010002603-08 (Smooth)

1010002604-08K (Skip Hewn)

1010002603-12

1010002604-12K

1010002603-16

1010002604-16K

Cedar Part #

2010002603-08

2010002603-08K

2010002603-12

2010002603-12K

2010002603-16

2010002603-16K

2 x 8 EZ Tongue & Groove

Log Siding (for interior use)

Species

Kiln Dried SPF / Air Dried Western Red Cedar

Surface

Smooth (Skip Hewn Available)

Coverage

6 5/8 inch

Square Foot Coverage

.55 sq. ft. per lin. ft.

Lengths

8′, 12′, 16′

Fasteners (Hidden)

Galvanized Brad or Finish Nails

Corners

Square Inside Corner

Inside Corner Log

Trim

2 1/4 x 4 Smooth, Skip Hewn, or Round

SPF Part #

1010022805-08 (Smooth)

1010022806-08K (Skip)

1010022805-12

1010022806-12K

1010022805-16

1010022806-16K

Cedar Part #

2010032804-08

2010032804-08K

2010032804-12

2010032804-12K

2010032804-16

2010032804-16K

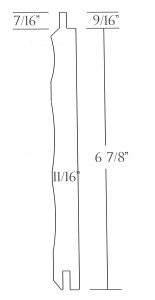

1 x 8 Woodsman (Reversible) (for interior use)

Finish your ceilings, walls and soffits with this versatile tongue and groove. One side is Rustic Hewn with beveled edge for that true cabin look, while the other has a Circle Sawn face and nickel gap for a more cottage feel. Or, order in smooth and still get the bevel and nickel options.

Species

Kiln Dried SPF

Surface

Rustic Hewn/Circle Sawn (Smooth also available)

Coverage

6-11/16 inch

Square Foot Coverage

.55 sq. ft. per lin. ft.

Lengths

8′ – 16′ Even

Fasteners

Finish Nails

Corners

Square Timber Corner

3″ V-notch Corner

Trim

1 1/2 x 3 1/2 Hewn

Part #

1010001808 (Reversible)

1010001808S (Smooth)

1010001810

1010001810S

1010001812

1010001812S

1010001814

1010001814S

1010001816

1010001816S

1 x 6 and 1 x 8 End-Matched (Reversible) (for interior use)

Now offering Smooth Wisconsin White-Pine 1×6 and 1×8 END-MATCHED TONGUE & GROOVE ! Priced per 200sqft Unit, includes random 18″ to 96″ lengths for staggered seams. Reversible with an Edge-V front and Flat back, great for ceilings, walls, or floors.

Species

Wisconsin White Pine

Surface

Smooth (only)

Coverage

5 and 6-3/4 inch respectively

Square Foot Coverage

.417 and .5625 sq. ft. per lin. ft. respectively

Lengths

18″ – 96″ Random

Fasteners

Finish Nails

Corners

Square Timber Corner

3″ V-notch Corner

Trim

1 1/2 x 3 1/2 Hewn

Part #

3010031612-08 (480 lin ft of 1×6)

3010031812-08 (356 lin ft of 1×8)

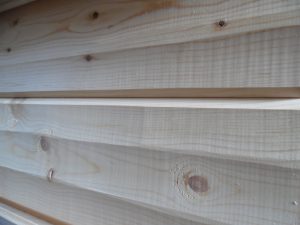

Rustic Hewn or Skip HewnMost log siding profiles can be ordered with a Rustic or Skip Hewn surface for a small upcharge. Siding ordered Rustic Hewn will have a machined hewn appearance as if shaved with a drawknife. Profiles ordered with a Skip Hewn surface come with a softer, hand-peeled look without the hand-peeled price.Thicknesses vary. (The 4-1/2×9 half log is available in Hand Hewn only.)Smooth

Rustic Hewn Skip Hewn

Authentically HAND HEWN!For a truly personalized look, choose an authentic “Hand Hewn” finish. Individually crafted, with non-repeating patterns, Hand Hewn is available on all log siding profiles, trim, corners, and logs. Pick your preferred Hand Hewn style & submit your project for custom pricing. All Hand Hewn orders will come as shown in picture 1 unless you request another option.

1 2

3 4 5

CLICK THE LINK BELOW FOR OUR RECOMMENDED

Log Siding Installation Instructions
