White Cedar Log Railing (Round)

All Rails, Posts, and Spindles have a hand-peeled appearance, so diameters will vary, and may have bowing.

Rail systems may be used on interior and exterior applications.

This White Cedar will naturally develop cracks and checks which enhances its rustic appeal.

White Cedar

Hand Peeled Appearance

Tenoned or Square Cut Ends

Interior or Exterior Use

Use for Decks, Lofts, or Stairs

6″ Vertical Posts, 4″ Horizontal Rails, 3″ Spindles

Individual pieces perfect for furniture building

Tenoned Rail Section

Rail sections come pre-assembled as shown.

Rail sections available in 3′, 4′, 5′, 6′, 7′, 8′, 9′ & 10′ lengths (measured end of rail to end of rail).

Installed measurements are 4″ less between posts (2’8″, 3’8″, etc) due to tenoned ends (fitting into posts).

Item Description Part #
3′ Cedar Rail Section w/Tenon 6100000301
5′ Cedar Rail Section w/Tenon 6100000501
7′ Cedar Rail Section w/Tenon 6100000701
9′ Cedar Rail Section w/Tenon 6100000901
Item Description Part #
4′ Cedar Rail Section w/Tenon 6100000401
6′ Cedar Rail Section w/Tenon 6100000601
8′ Cedar Rail Section w/Tenon 6100000801
10′ Cedar Rail Section w/Tenon 6100001001

Square Cut Rail Section (Trimmable)

Rail sections come pre-assembled as shown.

Rail sections available in 3′, 4′, 5′, 6′, 7′, 8′, 9′ & 10′ lengths (measured end of rail to end of rail).

Installed measurements are 4″ less post to post (2’8″, 3’8″, etc) due to trimming of straight cut ends.

Item Description Part #
3′ Cedar Rail Section (sq cut) 6000000301
5′ Cedar Rail Section (sq cut) 6000000501
7′ Cedar Rail Section (sq cut) 6000000701
9′ Cedar Rail Section (sq cut) 6000000901

Item Description Part #
4′ Cedar Rail Section (sq cut) 6000000401
6′ Cedar Rail Section (sq cut) 6000000601
8′ Cedar Rail Section (sq cut) 6000000801
10′ Cedar Rail Section (sq cut) 6000001001

Custom railings may be ordered for decks, loft areas, and stairways.

Custom Horizontal Railing Systems

Top and bottom rails are tenoned to fit into pre-drilled 6″ posts, based on diagram and measurements provided by the customer or

contractor. Posts will be evenly spaces unless specified differently on diagram. Sections will be numbered for assembly and include rails, spindles, and posts. Fasteners not included. Commercial Height Railing Available.

Custom Stair Railing

Top and bottom rails left long for on-site cutting or tenoning. Stair posts need to be sanded or drilled on site for proper fit. To

order: A stair measurement sheet must be filled out by the installer. Install staircase prior to measuring for railing to avoid errors.

Fasteners not included. Commercial Height Railing Available.


Rails

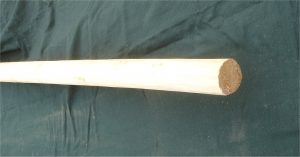

2″, 3″, or 4″ White Cedar Rails

Item Description Part #
2″x8′ Cedar Hand Rail 6000003800
3″x8′ Cedar Rail 6000003801
3″x10′ Cedar Rail 6000003810
4″x4′ Cedar Rail 6100004401
4″x8′ Cedar Rail 6000004801
4″x10′ Cedar Rail 6000004101
4″x12′ Cedar Rail 6000004121

Posts

The top has a slight bevel
6″ x 40″ Flush Mount White Cedar Post
6″ x 4′ Shoulder Notched White Cedar Post
Outside & Inside Corner Shoulder Notched Post

Item Description Part #
6″x40″ Flush Mount Post 6000004001
6″x48.5″ Flush Mount Post 6000004002
6″x48.5″ Shoulder Notched Post 6000006401
6″x48.5″ Outside Corner Shoulder Notched Post 6000016401
6″x48.5″ Inside Corner Shoulder Notched Post 6000016402
6″x40″ Half Post 6000004003
6″ x 48.5″ Notched Half Post 6000004004

Flush Mount Posts sit on the surface of you deck or loft. All notched posts are designed to lag into the deck joist.

See Railing Installation Sheets for more information.

Spindle

3″ White Cedar Spindle with tenoned ends.



Item Description Part #
3″x29″ Cedar Log Spindle w/Tenoned Ends 6000002802
3″x26″ Cedar Log Stair Spindle w/Tenoned Ends 6000002602
3″x29″ Cedar Log Spindle w/Untenoned Ends 6000002801



More Cedar Posts

6″ or 8″ White Cedar Posts

Item Description Part #
6″x8′ Cedar Post 6000006801
6″x10′ Cedar Post 6000006101
8″x40″ Cedar Post 6000038070
8″x48.5″ Cedar Post 6000038072
8″x8′ Cedar Post 6000038081

White Pine Timber Railing (Square)

 Pine railing is available in Smooth with Hewn Edges called Rustic Cabin Railing.

Rails are 3″x4″ while spindles are 2.25″x2.25″. Pine railing is to be used on interior straight and stair runs.

This White Pine will naturally develop cracks and checks which enhances its rustic appeal.



White Pine

Square Cut Ends

Interior Use

Use for Straight runs, Lofts, or Stairs

6″x6″ Vertical Posts, 3″x4″ Horizontal Rails, 2.25″x2.25″ Spindles

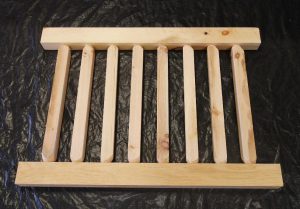

White Pine Square Cut Timber Rail Sections

Trimmable rail sections come pre-assembled as shown.

Rail sections available in 2′, 3′, 4′, 5′, 6′, 7′, 8′, 9′ & 10′ lengths (measured end of rail to end of rail)

Item Description Part #
3′ Rustic Cabin Rail Section  6400001603
5′ Rustic Cabin Rail Section 6400001605
7′ Rustic Cabin Rail Section 6400001607
9′ Rustic Cabin Rail Section 6400001609

Item Description Part #
4′ Rustic Cabin Rail Section  6400001604
6′ Rustic Cabin Rail Section 6400001606
8′ Rustic Cabin Rail Section 6400001608
10′ Rustic Cabin Rail Section 6400001610

Custom railings may be ordered for stairways.

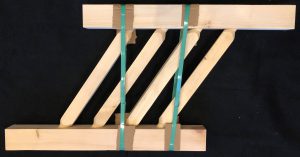

Custom Square Pine Stair Railing

Top and bottom rails left long for on-site cutting. To order: A stair measurement sheet must be filled out by the installer. Install staircase prior to measuring for railing to avoid errors. Fasteners not included.

Item Description Part #
Rustic Cabin Hewn Custom Stair Railing 6400001612

Pine Posts

Item Description Cabin Smooth Part # Rustic Cabin Hewn Part #
6″x6″x40″ Post 6000003901 6400003902
6″x6″x4′ Post 6000003911 6400003912

Flush Mount Posts sit on the surface of you deck or loft. See Railing Installation Sheets for more information.

CLICK THE LINK BELOW FOR OUR RECOMMENDED

                                                                                         Log Railing Measuring/RailingInstallInstructions

Log Stair Railing Measuring Sheets
